Description
Main features
- Produced in two kinds of casing: soft and hard
- Equipped with up to 7 electrochemical cells
- Equipped with up to 2 NDIR sensors
- Built-in 58mm ribbon graphic printer
- Built-in rechargeable battery for up to 7 hours of operating
- Peltier “miniDryer” with a peristaltic pump for condensate removal (optional)
- Probe holder with a standard M30x1 fitting, fits all madur gas probes with the K-type thermocouples
- Gas filter with condensate trap and replaceable insert
- Differential pressure sensor – for measurements of chimney draft and flow velocity (with help of Pitot tube)
- Soot measurement program
- Measurements of gas and ambient temperatures
- 2 additional inputs for extra temperature sensors
- Analogue outputs (0/4-20mA or 0-10V) – optional
- Built-in large memory for results, two formats of data savings
- Calculations of many additional parameters
- Firmware for gas calibrations
Two versions of analyser are available:

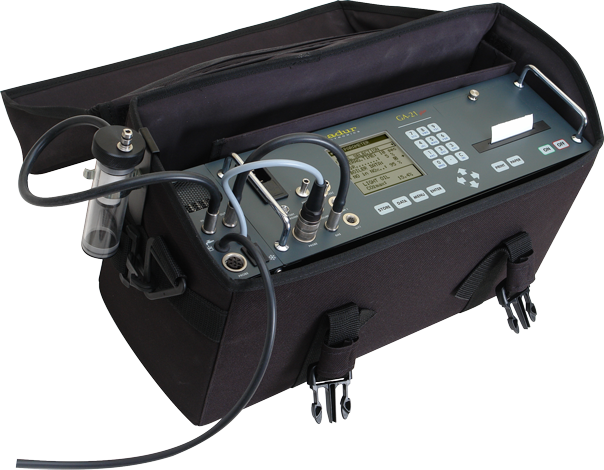

A. Version in “soft” casing
B. Version in “hard” casin

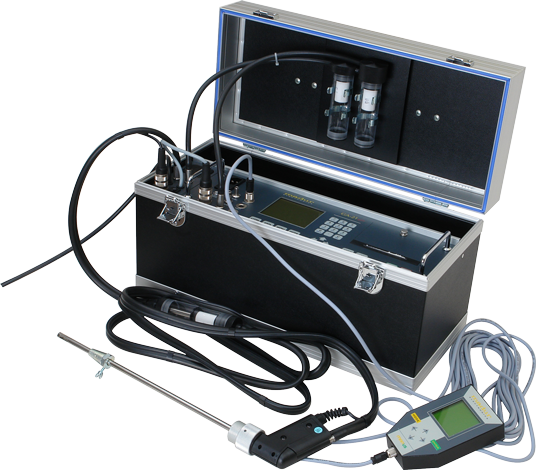

Complete and ready to operate GA-21plus analyser (hard case version)

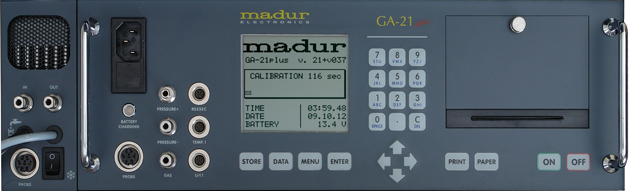

Front panel view
Gas and electric connectors (full option)

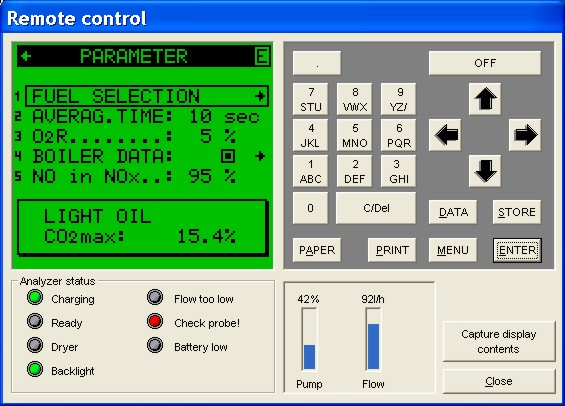

Example screenshots
Example printouts and screenshot from PC program
