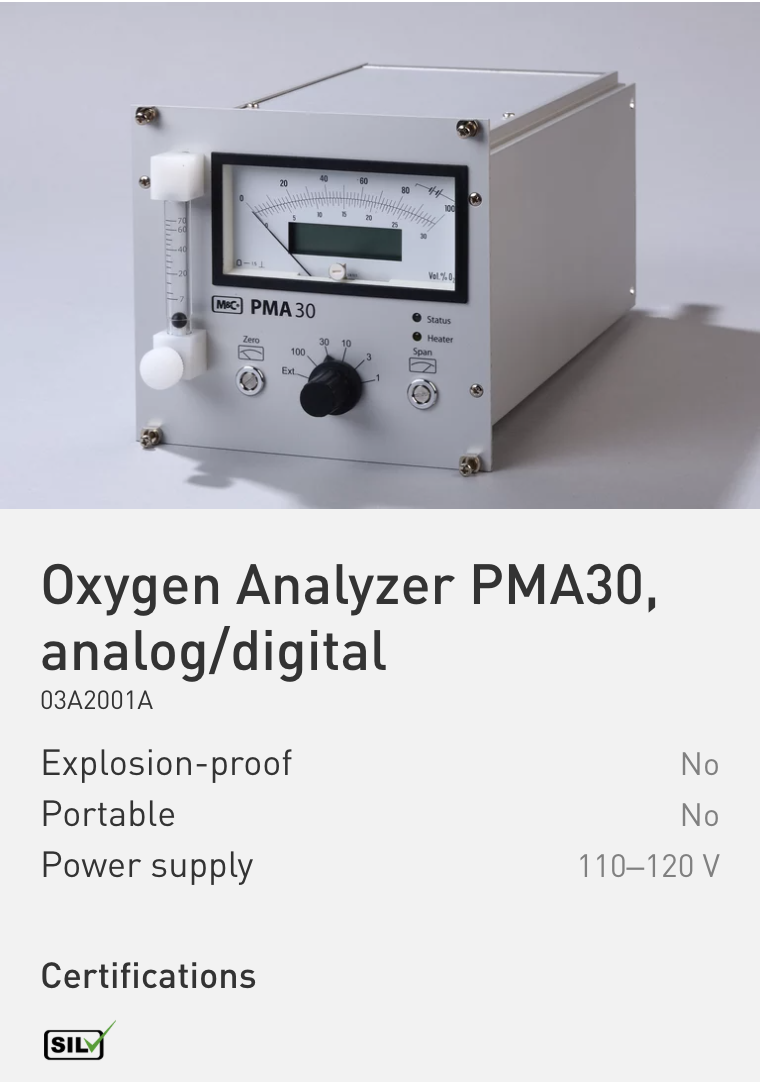

Oxygen Analyzer PMA30, analog/digital Part No.: 03A2001A

Product features

Heated O₂ analyzer in compact housing
Housing takes up 1/3 of a 19″ rack (28 HP)
SIL certification according to DIN EN 61508
Paramagnetic measuring principle
Measuring range remote control and indication
Flow alarm sensor downstream of the measuring cell
Analog and digital display
mA output: 4 to 20 mA
Small stagnant space, fast response time
Power: 115 V

Certifications

Applications

Due to the extremely fast response time of the patented M&C magneto-dynamic measuring cell without dead space as well as the negligible cross-sensitivity towards other sample gas components, the portable M&C oxygen analyzer PMA30 has a wide variety of applications. The analyzer is a suitable and reliable instrument for measuring oxygen concentrations in various gas analytical control applications including flue gas monitoring, inertization plants, fermentation processes as well as process or laboratory control measurements.

Description

Description

Oxygen analyzer type PMA30A/D with combined analog/digital display in 1/3 of a 19″ plug‑in rack (3 U, 28 HP), signal output: 4 to 20 mA (0 to 20 mA on request) with galvanic isolation max. load of 300 ohms (900 ohms on request), measuring ranges: 0 to 1/3/10/30/100 vol% O₂, can be pre‑selected at the analyzer or externally, including flow meter with needle valve 7 to 70 Nl/h, signal output for heating, safety, fuse, projection LED and flow, transmitter thermostatically regulated to +50 °C, power: 115 V/60 Hz

Overview

With four switchable measuring ranges, heated measuring cell, status signal output, with analog/digital display, power: 115 V/60 Hz or 230 V/50 Hz
