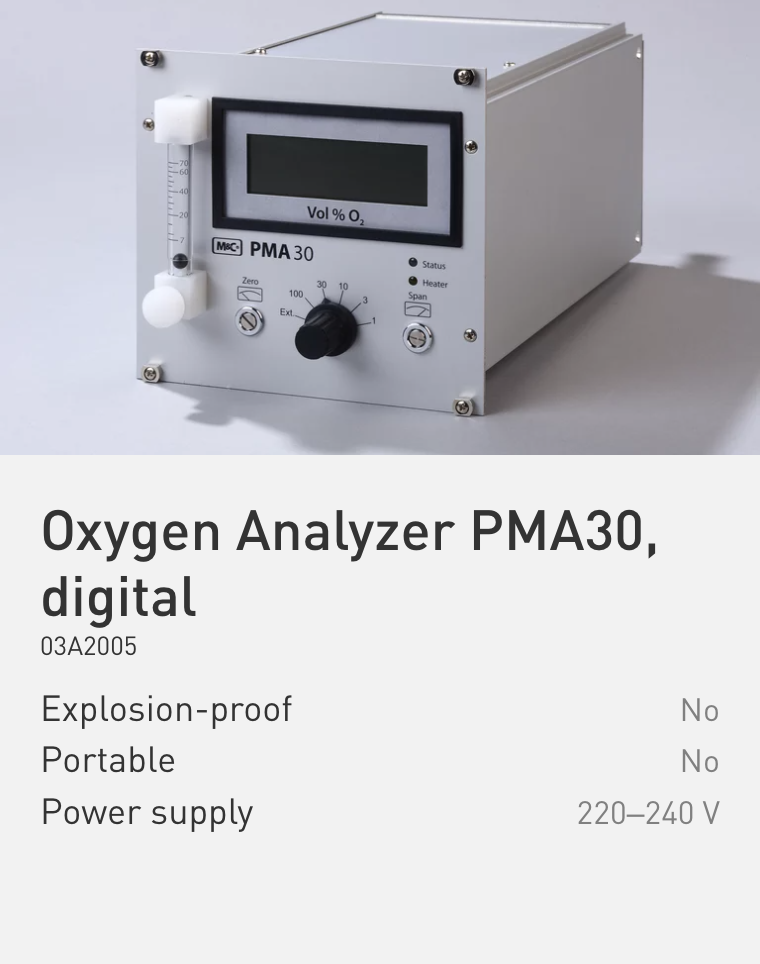

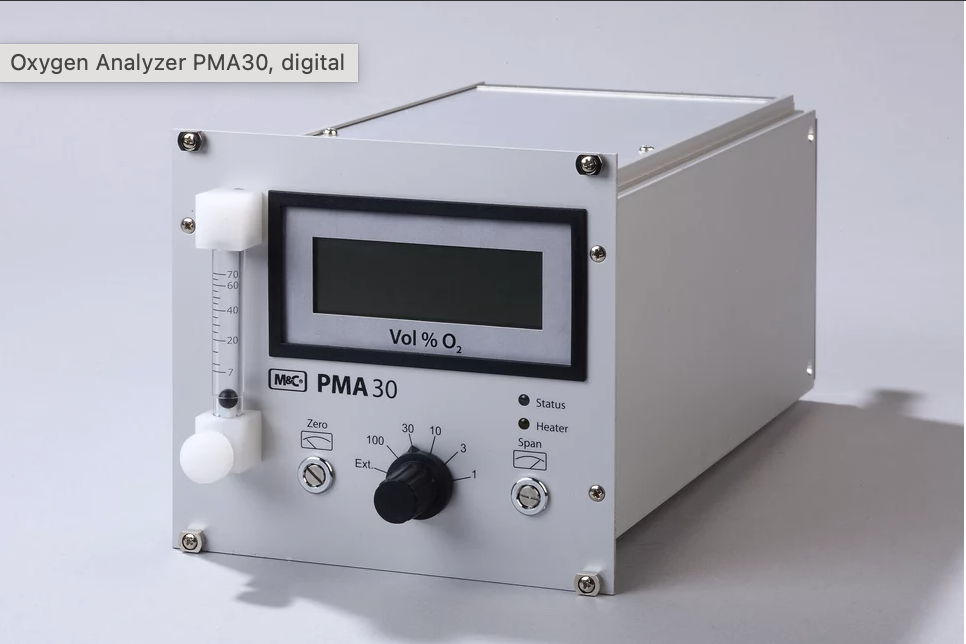

Oxygen Analyzer PMA30, digital Part No.: 03A2005______________

Product features

Heated O₂ analyzer in compact housing
Housing takes up 1/3 of a 19″ rack (28 HP)
SIL certification according to DIN EN 61508
Paramagnetic measuring principle
Measuring range remote control and indication
Flow alarm sensor downstream of the measuring cell
With digital display
mA output: 4 to 20 mA
Small stagnant space, fast response time
Power: 230 V

Applications

Due to the extremely fast response time of the patented M&C magneto-dynamic measuring cell without dead space as well as the negligible cross-sensitivity from other sample gas components, the portable M&C oxygen analyzer PMA30 has a wide variety of applications. The analyzer is a suitable and reliable instrument for measuring oxygen concentrations in various gas analytical control applications including flue gas monitoring, inertization plants, fermentation processes as well as process or laboratory control measurements.

Description

Description

Oxygen analyzer type PMA30/D with digital LCD display in 1/3 of a 19″ plug‑in rack (3 U, 28 HP), signal output: 4 to 20 mA (0 to 20 mA on request) with galvanic isolation output max. load of 300 Ohm (900 Ohm on request), measuring ranges: 0 to 1/3/10/30/100 vol% O₂, can be selected at the analyzer or externally, including flow meter with needle valve 7 to 70 Nl/h, signal output for heating, safety, fuse, projection LED and flow, transmitter thermostatically regulated to +50 °C, power: 230 V/50 Hz

Overview

With four switchable measuring ranges, heated measuring cell, status signal output, with digital display, power: 115 V/60 Hz or 230 V/50 Hz
