Portable Sampling System PSS-STS Part No.: 07A2000

Product features

  • Designed for short and long-term measurements up to 2 weeks
  • Simple replacement of the traps

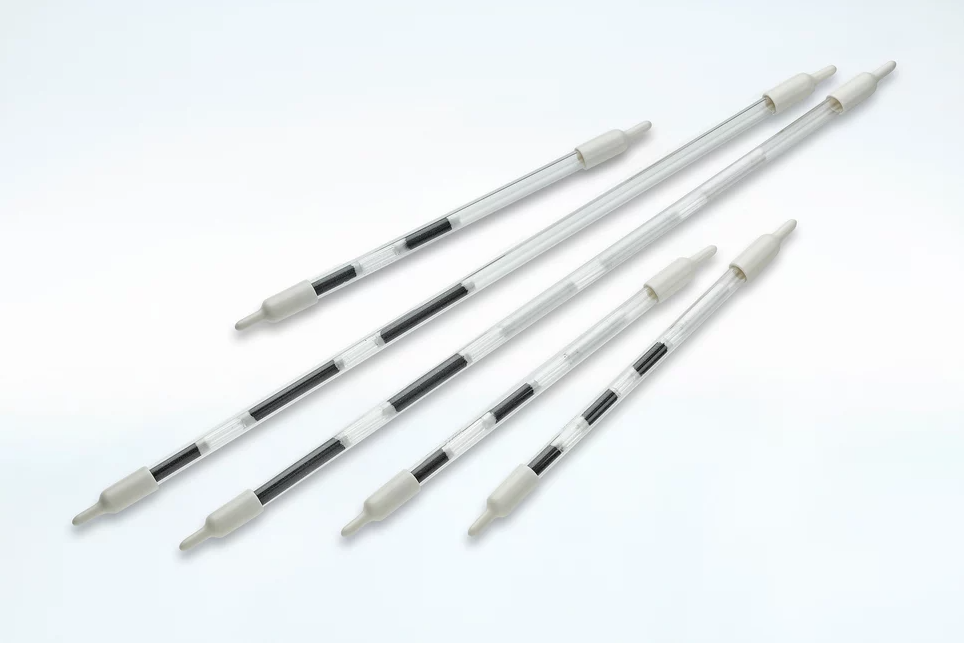

  • 2 parallel sampling channels for traps with 10 mm diameter and up to 400 mm length
  • Automatic leakage tests before and after the collecting cycle
  • Flow rates from 2 to 87 Nl/h
  • Peltier cooler for condensate separation
  • Control and cooler unit in two mobile and portable plastic cases
  • Ready for operation incl. warm-up phase in 30 minutes
  • Suitable for monitoring of low emission limits

Add to quote
Categories: , Brand:

Description

Description

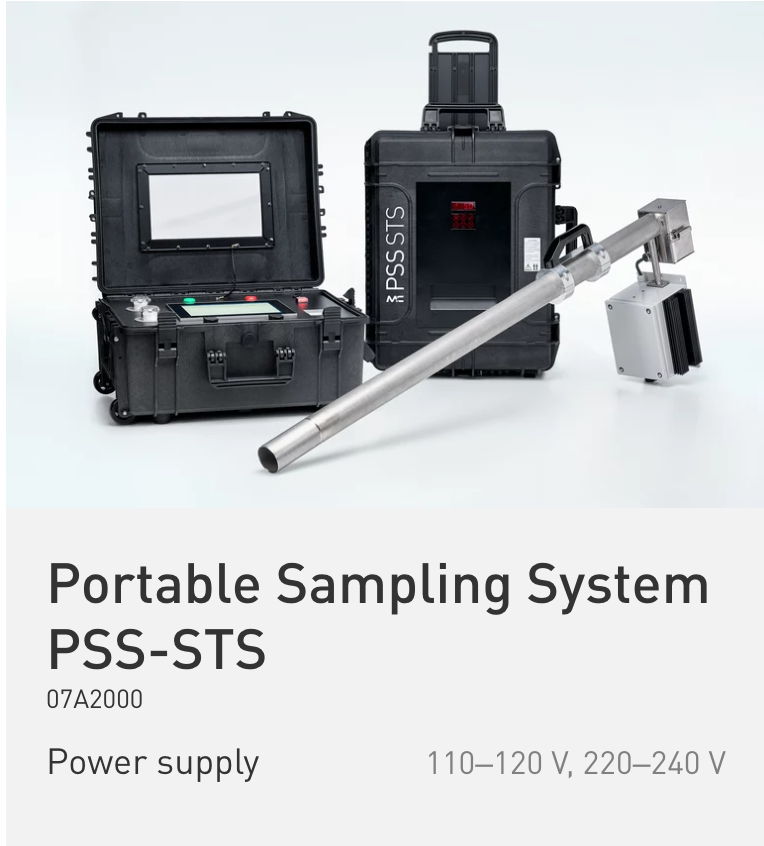

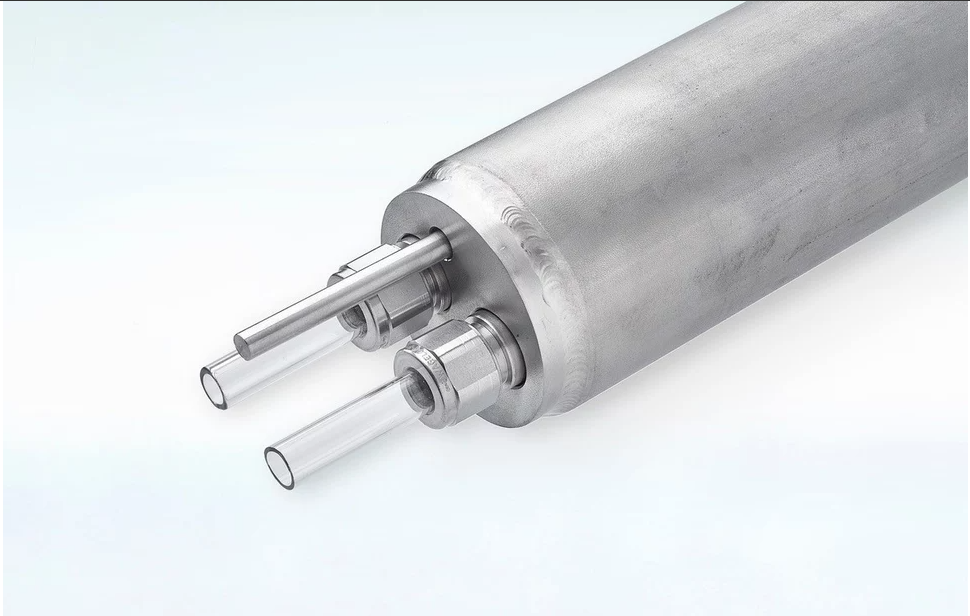

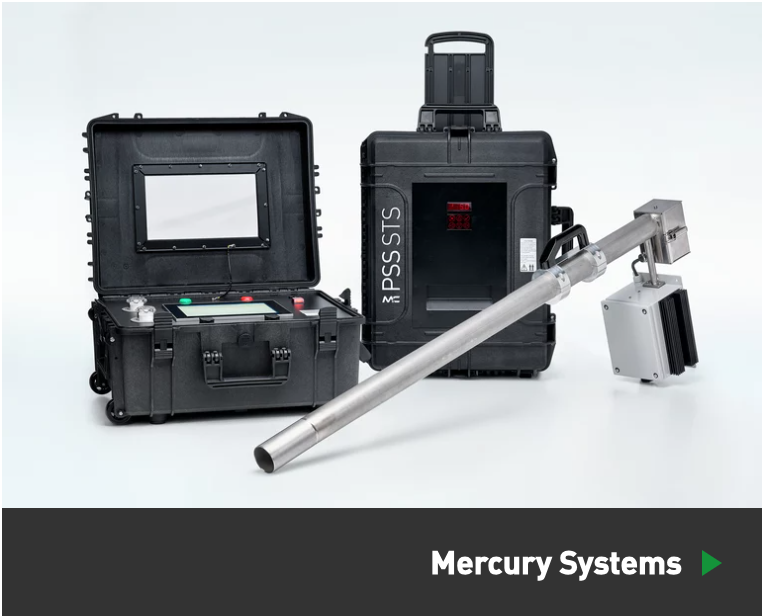

The portable sampling system PSS‑STS is used to determine the total mercury concentration in flue gases. The flue gas is actively drawn from the process via a sample probe and passed through the sorbent traps. The downstream cooler, which separates the condensate, and the control unit are housed in two impact‑resistant cases (IP42). The control unit contains a front‑panel PC for monitoring and controlling the sampling process, including automatic leak tests. After completion of the sampling process, the traps are sealed and analyzed in a laboratory. New traps are used for each subsequent measurement.
